Product Details:
|
| Shrink Ratio: | 3:1 | Fully Shrink Temperature: | 125℃ |
|---|---|---|---|
| Operating Temperature: | -45℃～110℃ | Tensile Strength: | 10.4MPa |
| Elongation Ratio: | ≥200% | Flame Retardant: | Yes |
| Volume Resistivity( Ω.cm): | ≥ 1X10^14 | RoHS Compliant: | Yes |
| Highlight: | Adhesive Lined Heat Shrink Tubing,Heavy Wall Heat Shrink Tubing,Cross linked Polyolefin Heat Shrink Tubing |
||

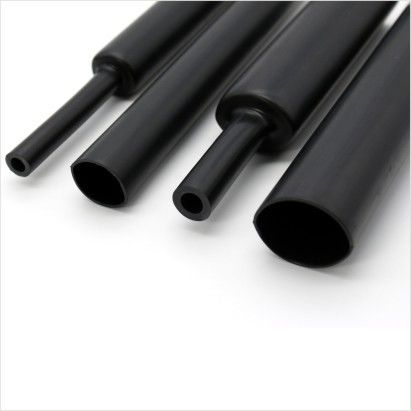

Heavy Wall Adhesive-Lined Cross-linked Polyolefin Heat Shrink Tubing
Product Description
Heavy wall adhesive-lined heat shrink tubing provides maximum reliability for insulating and protecting cable joints and terminations.
Features
● 3:1 shrink ratio, not flame-retardant
● Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations
● High impact, abrasion, corrosion and chemical resistance
● Rated for 1kv, 90℃ continuous use application
● Thermoplastic adhesive liner provides complete environmental protection and installation
● Continuous operating temperature:-45℃-110℃
● Fully shrink temperature: 125℃
Dimensions
Technical Data
| Property | Test Method | Standard | Typical Performance |
| Tensile strength(MPa) | ASTMD 2671 | ≥10.4 | 11.25 |
| Elongation(%) | ASTMD 2671 | ≥200 | 423.87 |
| Tensile strength after aging(MPa) | UL224 158℃X168hr | ≥7.3 | 10.35 |
| Elongation after aging (%) | UL224 158℃X168hr | ≥100 | 390.69 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 21.31 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1X10^14 | 2.57X10^14 |
| Property | Test Method | Standard |
| Water Absorption | ASTM D570 | <0.2% |
| Sofening Point(℃) | ASTM E28 | 95±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm
Port: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
