Product Details:
|
| Material: | Cross Linked Polyolefin | Insulator Type: | Heat Shrink Anode Caps |
|---|---|---|---|
| Mix Order: | Yes | Origin: | CN(Origin) |
| Custom Pack: | Can Do | Lead Time: | 3-7Days |
| Support: | Dropshipping | Environmental Standards: | RoHS |
| Highlight: | Heat Shrinkable Anode Caps,Insulated Shrinkable Anode Caps,RoHS Shrinkable Anode Caps |
||
RoHS Insulated Heat Shrinkable Anode Caps
Manufactured from polyolefin,inner coated with adhesive.
• Manufactured from cross-linked polyolefin
• Used to Sealing and protecting the critical connection between lead wire and anode
• Ideal to avoid premature system failure due to loss of the wire to anode termination
• Continuous operation temperature: -45℃ to 105℃
Used to Sealing and protecting the critical connection between lead wire and anode
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥12MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength after Aging | ASTM-D-638 | ≥10MPa(130℃,168 hrs) |
| Elongation at Break after Aging | ASTM-D-638 | 240%(130℃,168 hrs) |
| Dielectric Strength | IEC 60243 | ≥15 kV/mm |
| Volume Resistivity | IEC 60093 | ≥1×10^13Ω·cm |
| Longitudinal Shrinkage | ASTM-D-2671 | ≤10% |
| Water Absorption | S062 | ≤0.50 |
| Eccentricity | ASTM-D-2671 | ≤30% |
| Stress Cracking Resistance | ASTM-D-1693 | Me crackinc |
| Fungus and Decay Resistance | S0846 | Pass |

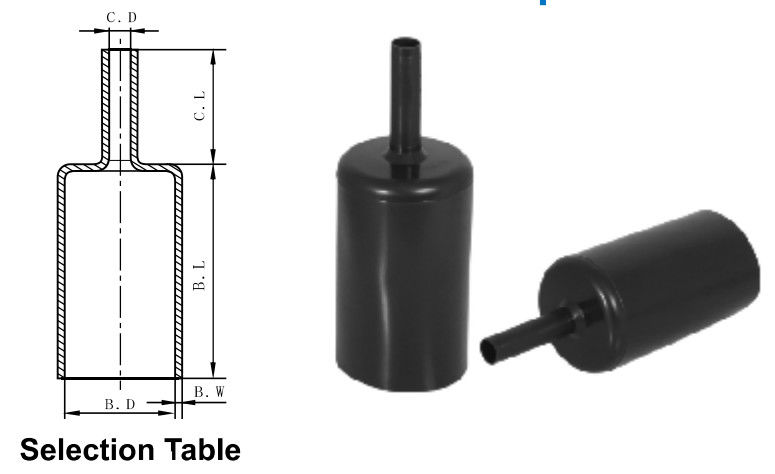

Select Table:
| Product No | B.D/mm | C.D/mm | B.L (±3)/mm |
C.L (±3)/mm |
B.W (±0.2)/mm |
||
| As Supplied(Min) | After Recovered(Max) | As Supplied(Min) | After Recovered(Max) | ||||
| AC-68/48 | 68 | 48 | 12 | 7 | 76 | 78 | 2.5 |
| AC-87/63 | 87 | 63 | 12 | 7 | 102 | 78 | 2.7 |
| AC-120/86 | 20 | 86 | 13 | 7 | 102 | 78 | 2.7 |
| AC-114/86 | 114 | 86 | 12 | 7 | 102 | 78 | 2.7 |
| AC-50/30 | 50 | 30 | 20 | 6.5 | 45 | 105 | 3.2 |
| AC-86/42 | 86 | 42 | 16.8 | 6.5 | 152 | 80 | 3.2 |
| AC-112/58 | 12 | 58 | 16.8 | 6.5 | 152 | 80 | 3.2 |
Remark: The anode cap coated with hot-melt adhesive comes in two forms: plane adhesive and spiral adhesive, which can meet different customer needs.
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
