Product Details:
|
| Shrink Ratio: | 4:1 | Fully Shrink Temperature: | 125℃ |
|---|---|---|---|
| Operating Temperature: | -45℃～125℃ | Tensile Strength: | 11.5MPa |
| Elongation Ratio: | ≥350% | Inflammability: | VW-1 |
| Standard Color: | Black | Dieletric Strength: | 17.5 Kv/mm |
| Highlight: | Adhesive Lined Heatshrink Polyolefin Tubing,4:1 Shrink Ratio Polyolefin Tubing,Dual Wall Adhesive Lined Polyolefin Tubing |
||

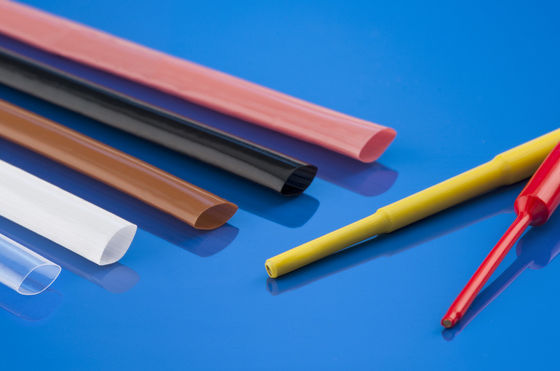

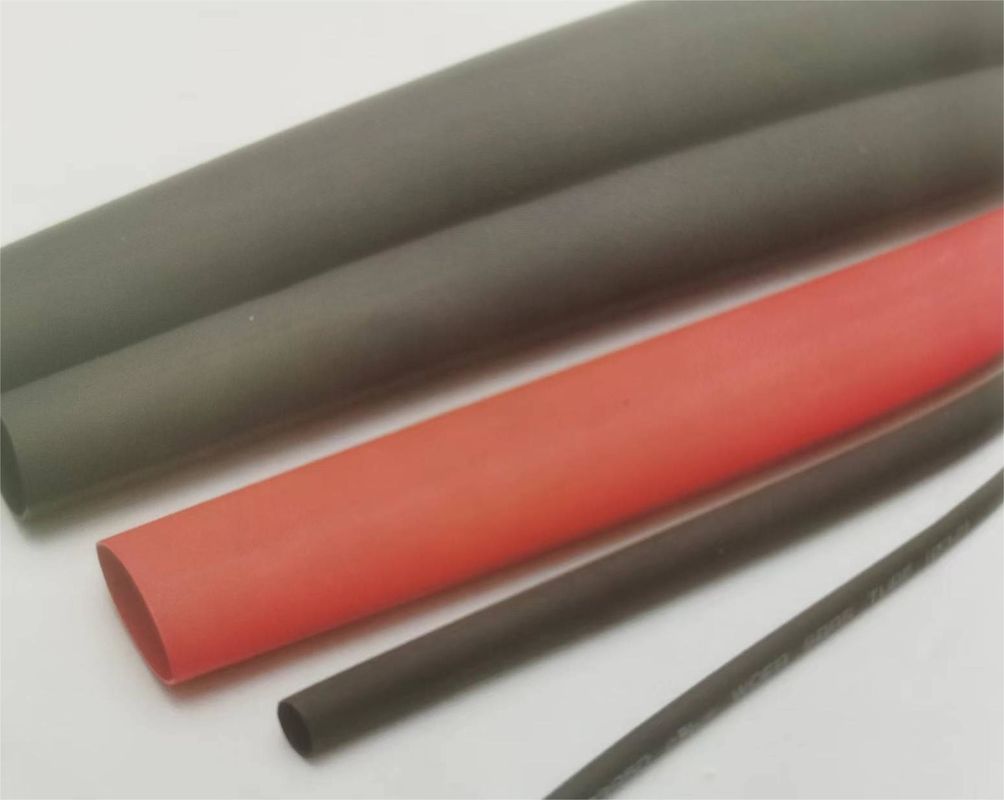

Dual Wall Adhesive-Lined Heat Shrink Polyolefin Tubing 4:1 Shrink Ratio
Product Description
Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.
Features
1.Shrinkage Ratio: 4:1
2.Continuous operating temperature:-45℃ ~ +125℃
3.RoHS compliant: UL approved
4.Fully shrinkage temperature: ≥125℃
5.Inner adhesive bonds to plastics, steel and polyethyleneHigh flame retardant
6.Out jacket flame retardant
7.Standard color: Black ( other color can be customized
8.Low longitudinal shrinkage
9.Superior sealing against water, moisture or other contaminants
10.Ideal for connector sealing covering large diameter differences
Applications
Mainly used in electronic equipment wire connection, automobile wiring harness, home appliance wiring harness, wire and cable branch, metal pipeline, wire and cable repair, submersible pump wiring and other occasions that need to be sealed
Dimensions
| Size | As Supplied(mm) | After Recovery(mm) | Standard Package | |||
| Inch | mm | Internal Diameter | Internal Diameter | Total Wall Thickness | Adhesive Thickness | Spool Length M/spool |
| 5/32 | 4 | 4 | 1 | 1.05±0.30 | 0.50±0.30 | 200 |
| 1/4 | 6 | 6 | 1.5 | 1.15±0.30 | 0.50±0.30 | 100 |
| 5/16 | 8 | 8 | 2 | 1.55±0.30 | 0.60±0.30 | 50 |
| 1/2 | 12 | 12 | 3 | 1.75±0.30 | 0.60±0.30 | 1.22 OR 25M/Roll |
| 5/8 | 16 | 16 | 4 | 2.00±0.30 | 0.70±0.30 | 1.22 OR 25M/Roll |
| 25/32 | 20 | 20 | 5 | 2.30±0.40 | 0.70±0.30 | 1.22 OR 25M/Roll |
| 1 | 24 | 24 | 6 | 2.60±0.40 | 0.75±0.30 | 1.22 OR 25M/Roll |
| 1-1/4 | 32 | 32 | 8 | 3.00±0.40 | 0.90±0.30 | 1.22 OR 25M/Roll |
| 2 | 52 | 52 | 13 | 3.35±0.50 | 0.95±0.30 | 1.22 OR 25M/Roll |
Technical Data
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Tensile Strength(MPa) | ASTM D2671 | ≥300 | 450 |
| Tensile Strength after aging (MPa) | UL224 150℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 150℃X168hr | ≥200 | 350 |
| Dieletric strength(kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1×10^14 | 2.5×10^14 |
| Flammability | ASTM D2671 B | Self-extinguish within 30s | |
| Property | Test Method | Standard |
| Water Absorption | ASTM D570 | <0.2% |
| Sofening Point(℃) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
Packaging Details: According to the tubing's size
Packing size: 46cmx46cmx45cm
Port: Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 100 MOQ: 100 MOQ: 100
For more customization details, message supplier
