Product Details:
|
| Chemical Resistance: | Resistant To Most Chemicals | Size: | Various Sizes Available |
|---|---|---|---|
| Strong Acid Resistance: | Yes | Durability: | Highly Durable And Long-lasting |
| Moisture Resistance: | Highly Resistant To Moisture | Non-Stick Surface: | Non-stick Surface For Easy Cleaning |
| Waterproof: | Waterproof And Moisture-resistant | Temperature Range: | -65°C To +200°C |
| Highlight: | Sleeve Chemical Resistance,sleeve Chemical Resistance,Moisture resistant sleeve |
||

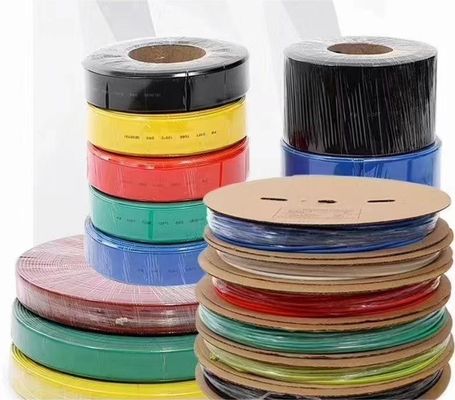

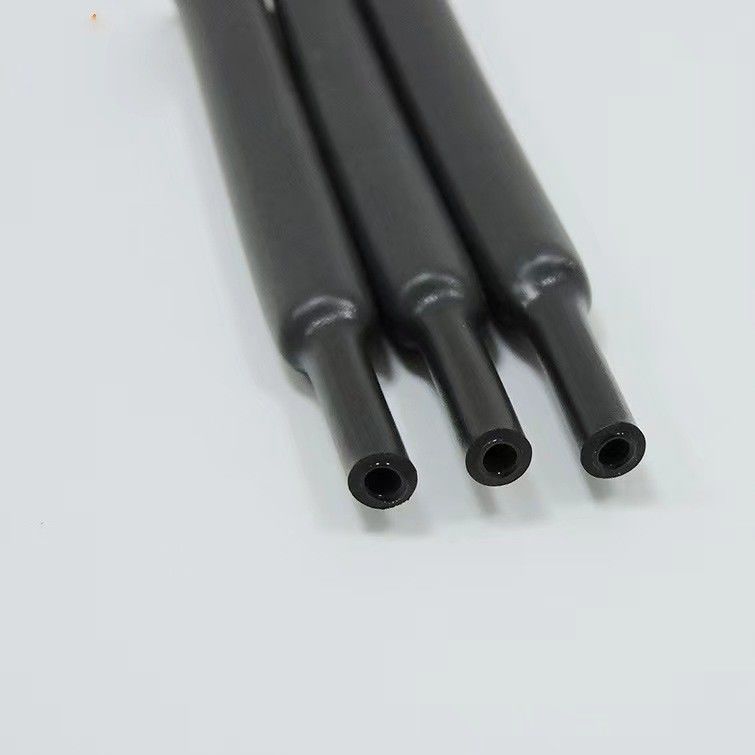

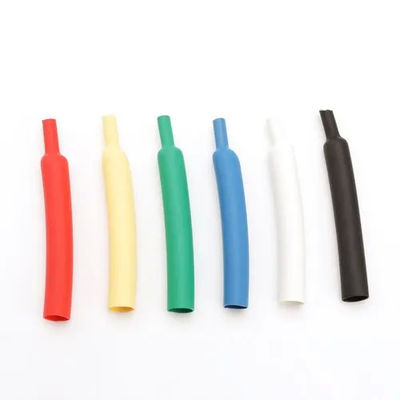

Flame Retardant Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing To Most Chemicals Chemical Resistance
| Size | As Supplied(mm) | After Recovery (mm) | Standard Package | |||
| Inch | mm | Inner Diameter | Inner Diameter | Total Wall Thickness | Adhesive Thickness | Spool Length Meter/spool |
| 1/16 | 1.6 | 1.6 | 0.8 | 0.60±0.30 | 0.30±0.2 | 200 |
| 3/32 | 2.4 | 2.4 | 1.2 | 0.70±0.30 | 0.35±0.2 | 200 |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.70±0.30 | 0.35±0.2 | 200 |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.80±0.30 | 0.40±0.2 | 100 |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.80±0.30 | 0.40±0.2 | 100 |
| 5/16 | 7.9 | 7.9 | 3.9 | 0.90±0.30 | 0.45±0.2 | 100 |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.90±0.30 | 0.45±0.2 | 50 |
| 1/2 | 12.7 | 12.7 | 6.4 | 0.95±0.40 | 0.45±0.2 | 1.22 OR 25M/ROLL |
| 5/8 | 15.9 | 15.9 | 7.9 | 0.95±0.40 | 0.45±0.2 | 1.22 OR 25M/ROLL |
| 3/4 | 19.1 | 19.1 | 9.5 | 1.00±0.40 | 0.45±0.2 | 1.22 OR 25M/ROLL |
| 1 | 25.4 | 25.4 | 12.7 | 1.10±0.40 | 0.45±0.2 | 1.22 OR 25M/ROLL |
| 1 1/4 | 31.8 | 31.8 | 15 | 1.15±0.40 | 0.50±0.2 | 1.22 OR 25M/ROLL |
| 1 1/2 | 38.1 | 38.1 | 19 | 1.25±0.40 | 0.50±0.2 | 1.22 OR 25M/ROLL |
| 1 3/4 | 44.5 | 44.5 | 22 | 1.35±0.40 | 0.55±0.2 | 1.22 OR 25M/ROLL |
| 2 | 50.8 | 50.8 | 25.4 | 1.50±0.40 | 0.60±0.2 | 1.22 OR 25M/ROLL |
Hot Melt Adhesive Property
| Property | Test Method | Stantard |
| Water Absorption | ASTM D570 | ≤0.2% |
| Sofening Point(℃) | ASTM E28 | 90±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
Technical Data
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation(%) | ASTM D2671 | ≥300 | 450 |
| Tensile Strength after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 350 |
| Dieletric strength(kv/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1x1014 | 2.5x1014 |
| Flammability | ASTM D2671B | Self-extinguish within 30s | |
The Sleeve will be carefully packaged to ensure its safe delivery.
Shipping:
The Sleeve will be shipped via a reliable and trusted courier service. We offer both domestic and international shipping options. The shipping cost will be calculated based on the destination and weight of the package.
Delivery Time:
Delivered within 3-7 business days in usually
Tracking:
Once the package is shipped, a tracking number will be provided to the customer via email. This will allow the customer to track the status of their order and know the estimated delivery date.
Customs and Duties:
For international orders, the customer is responsible for any customs duties or taxes that may apply. We are not responsible for any delays or additional charges caused by customs clearance.
Please contact us via email or phone for prompt assistance. We are committed to providing a smooth and hassle-free packaging and shipping experience for our customers to ensure the safe delivery of the Sleeve. Thank you for choosing our product.
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
