Product Details:
|
| Abrasion Resistant: | Good | Standard Color: | Black,Orange (Other Colors Can Be Customized) |
|---|---|---|---|
| Flame Retardant: | Yes | Flexible: | Easy To Bend |
| Material: | PET | Product Name: | Self Wrapping Sleeving |
| Temperature Range: | -50°C To 150°C | Melting Point: | 240℃±10℃ |
| Certification: | RoHS | Model Number: | φ5~φ50 |
| Highlight: | PET wrap around braided cable sleeving,PET wrap around cable sleeve,Self extinguish wrap around cable sleeve |
||

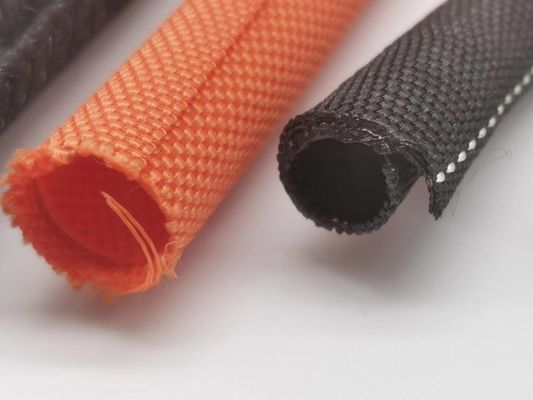

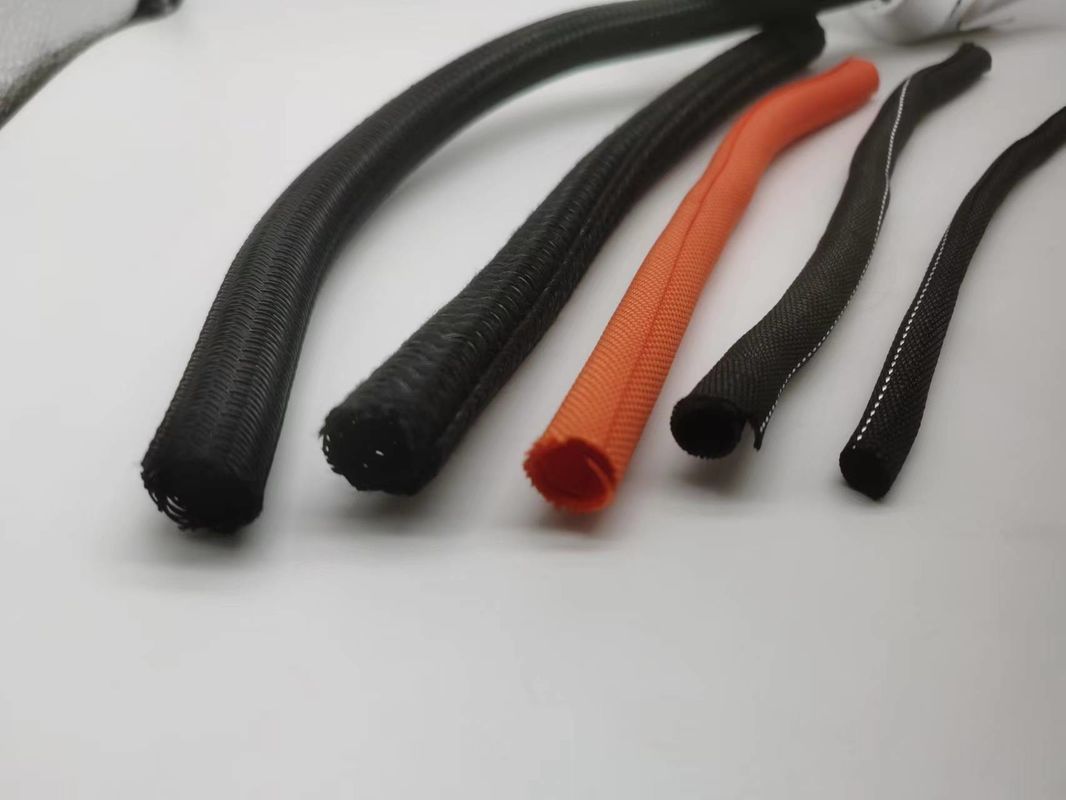

Self-Closing Woven PET Cable Wrap Around Sleeve
Product Description
It is woven by polyester monofilament and polyester multifilament. It is a new type of wire protection sleeve. This product has fire resistance and softness.
Wear-resistant, heat-dissipating, simple and convenient operation, the open structure is conducive to the modification, reassembly, maintenance and overhaul of the internal wiring harness.
Features
1. Excellent softness, easy to bend, can be loose can be tight
2. Good scalability, elasticity and wear resistance
3. Material: PET
4. Continuous operating temperature:-50℃ ~ 150℃
5. Melting point: 240℃±10℃
6. RoHS compliant
7. Flame retardant rating:Self-extinguish
8. Standard color: Black (Other colors upon request)
Applications
This product is widely used in automotive, high-speed rail, communication, automation equipment, computer wire, especially suitable for environments that require protection and heat dissipation.
Dimensions
| NO. | Inradium(mm) | Maximum outer diameter of the parcel(mm) | Spreading width(mm) | Packaging standard (m/roll) |
| 1 | 5 | 6 | 28±2 | 250 |
| 2 | 8 | 9 | 40±2 | 250 |
| 3 | 10 | 11 | 50±5 | 150 |
| 4 | 13 | 14 | 60±5 | 100 |
| 5 | 16 | 17 | 80±5 | 100 |
| 6 | 19 | 20 | 105±5 | 50 |
| 7 | 25 | 27 | 125±8 | 50 |
| 8 | 29 | 31 | 145±8 | 50 |
| 9 | 38 | 40 | 188±10 | 25 |
| 10 | 50 | 52 | 248±10 | 25 |
Packaging Details According to the tubing's size
Packing size: 46*46*45cm
Port Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
